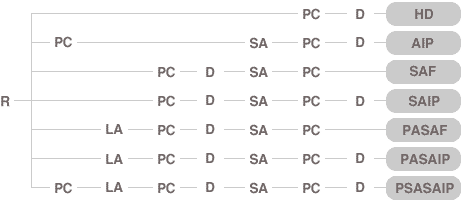

Characteristics
HRPP : W/Rods + Phosphate Coated
HD : W/Rods + Phosphate Coated + Cold Drawn
SAPP : W/Rods + Coated +Spheroidized Annealed + Phosphate Coated
SAF : W/Rods + Coated + Drawn + Spheroidized Annealed + Phosphate Coated
SAIP : W/Rods + Coated + Drawn + Spheroidized Annealed + Phosphate Coated + Cold Drawn
Regular Steel Grade
SAE 1006/1010/1018/1022/1025/1035/1038/1045(L)/1050
SAE 1541/4037/4135/4140/5140
SAE 10B21/10B35/10B38/15B41/51B20/51B37/51B40
SAE 1213/12L14(Free Cutting Steel SUM22/24L)
SAE 9254 (Spring Steel SUP7/9/10)
SAE 52100 (Bearing Steel SUJ-2 )
SUS 303/304/316(L)/410/416/430 (Stainless Steel)
SUH 3 (Heat Resting Steel for Engine Valves)
Available Size & Dimension
| HD, SAFS, SAIP | HRPP, SAPP | |
|---|---|---|
| Diameter (mm) | 2.0 - 32.0 | 5.5 - 42.0 |
| Dia. Tolerance (mm) | +0, -0.002 (min) | +/- 0.5 (max) |
| Coil Dimension (I.D.) | 610 - 1,100 mm | 850 -1,100 mm |
| (O.D) | 650 - 1,600 mm | 1,250-1,500 mm |
Decarburization Depth
| Process | Dia.(mm) | Carbon Steel | Alloy Steel | ||
|---|---|---|---|---|---|
| DM-F | DM-T | DM-F | DM-T | ||
| SAPP | ~10 | 0.040 | 0.150 | 0.040 | 0.150 |
| 10~ | 0.050 | 0.200 | 0.050 | 0.200 | |
| SAF | ~8 | 0.040 | 0.150 | 0.030 | 0.120 |
| PASAF | 8 ~ 14 | 0.050 | 0.200 | 0.040 | 0.150 |
| 14 ~ 20 | 0.060 | 0.200 | 0.050 | 0.200 | |
| 20~ | 0.070 | 0.250 | 0.060 | 0.250 | |
| SAIP | ~8 | 0.030 | 0.120 | 0.020 | 0.100 |
| PASAIP | 8 ~ 14 | 0.040 | 0.150 | 0.030 | 0.120 |
| 14 ~ 20 | 0.050 | 0.200 | 0.040 | 0.150 | |
| 20~ | 0.060 | 0.200 | 0.050 | 0.200 | |
| DM-F : Decarburization Microscope Ferrite | |||||
| DM-T : Decarburization Microscope Total | |||||
Application of CHQ Wires
| Application | Steel Grade | Process |
|---|---|---|
| Flange Bolt & Nut | SAE1025-1045 SWRCH25F~45F | SAIP/PSASAIP |
| SAE4035 SCM435 | PASAIP | |
| SAE1010 SWRCH10A | HD | |
| Ball Housing | SAE1045 SWRCH45F | PSASAIP |
| Boxer Wrench | SAE1045FCR SWRCH45FCr | SAIP |
| SAE415H SCM415H | PASAIP | |
| Drill Piece | SAE1018~1045 SWRCH18A~22A | SAIP |
| Armature Shaft | SAE1045 SWRCH45F | R)AIP |
| SAE1045FCR SWRCH45FCr | SAIP | |
| Chain Pin | SAE4115~4135 SCM415H~435 | AIP |
| Cylinder Head Bolt | SAE4135H SCM435H | AIP/PASAIP |
| Hex. Bolt | SAE4135 SCM435 | AIP/PASAIP |
| SAE1045 SWRCH45F | SAF/SAIP | |
| Hub Bolt & Nut | SAE4135 SCM435 | AIP/PASAIP |
| Lead Wire | SAE1006~1008 SWRCH6A~8A | HD |
| Nipple | SAE12L14 SUM24L | SAIP |
| Piston Pin | SAE4115~4135H SCM415H~435H | PASAIP |
| Screw | SAE1006~1010A SWRCH6A~10A | HD/HRPP |
| Start Motor Parts | SAE10B21 SWRCH22B | SAIP |
| SAE1045 SWRCH45F | SAIP | |
| Tire Rod Pin | SAE1045 SWRCH45F | AIP/SAIP |
| Tire Spoke | SAE4135 SCM 435 | PASAIP |
| Wheel Nut Wrench | SAE1045 SWRCH45F | SAIP |
| Wrench Bol | SAE1045 SWRCH45F | SAIP |
| SAE4135 SCM435 | AIP | |
| Ball Stud | SAE4115~4140 SCM415H~440 | PASAIP |
| Ball & Roller Bearing | SAE52100 SUJ2 | PASAIP |
Surface Condition
BCA --- Phosphate(Bonderite with Ca) + Lime
CAL --- Phosphate(Bonderite with Zn & Ca) + Bonderlube
BRL --- Phosphate(Bonderite with Zn) + Bonderlube
Packing Method for Export
about 150 (1,000) kgs single coil, strapped by steel banding
about 200 kgs single coil, strapped by steel banding, wrapped by pp cloth,
pp cloth after unitization into one bundle
about 1,000 kgs single coils wrapped by pp cloth.
Delivery & Shipment
within 30-90 days from final agreement of contract
via conventional or container vessel
